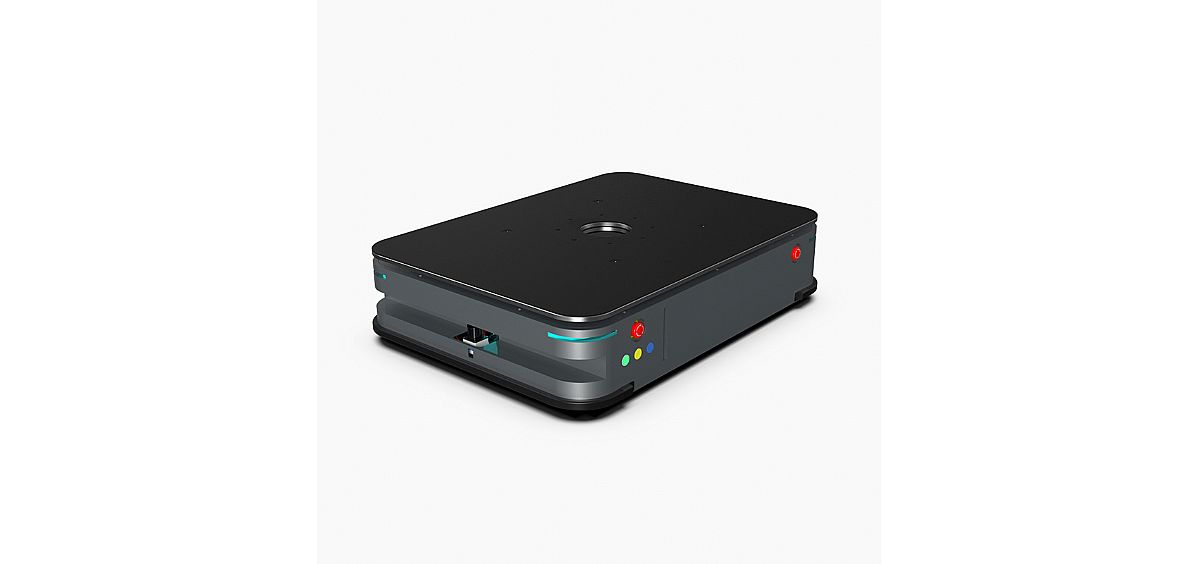

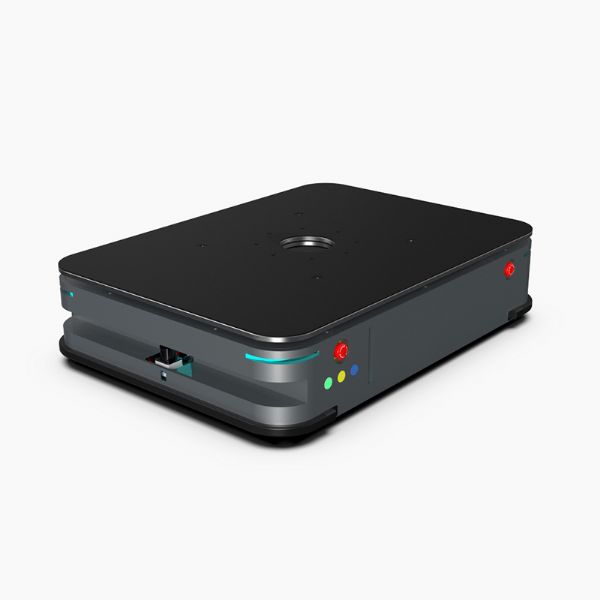

Laser SLAM Rotating-Jack Robot JCJV-SW1500

eavy-Duty Load Capacity, Reliable Material Handling

• Rated Load Capacity: 1500 kg
• Comprehensive Runtime: 6 h
• Rotation Diameter: 1412 mm
• LiDAR Configuration: 1 × H1 Model + 1 × C2 Model
• Positioning Accuracy: ±5 mm, ±1°
• Max. Travel Speed: ≤1.67 m/s
• Dimensions (L × W × H): 1210 × 892 × 280 mm
• Chassis Ground Clearance: 30 mm
• Lifting Platform Dimensions: 1180 × 860 mm
• Max. Lifting Stroke: 60 ± 1 mm
Wholesale Inquiry

PRODUCT DETAILS

[ Multiple Navigation Options ]
Supports optional laser SLAM, QR code, and laser reflector positioning navigation to meet various positioning needs in different scenarios.

[ 1.5T Heavy Load ]
1.5T ultra-large load capacity, super strong handling capacity, meets the needs of heavy-duty handling.

[ All-round Shelf Recognition ]
Supports recognition of various shelving types to meet the handling needs of multiple scenarios.

[ More Precise Positioning ]
±5 mm positioning accuracy, more precise and more efficient.

[ Flexible Movement ]
Compact size, adaptable to narrow aisles; trackless navigation is more efficient, lower deployment cost, and more flexible movement.

[ 6-hour Long Battery Life ]
Large capacity battery, 6-hour battery life, meets the continuous handling needs of factories.
