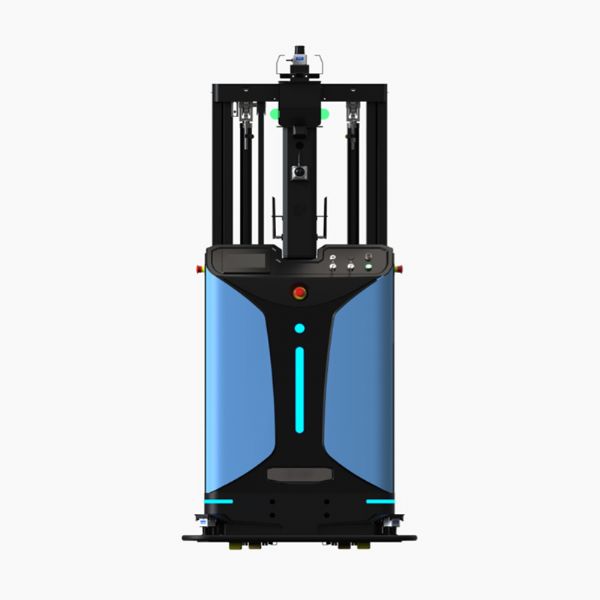

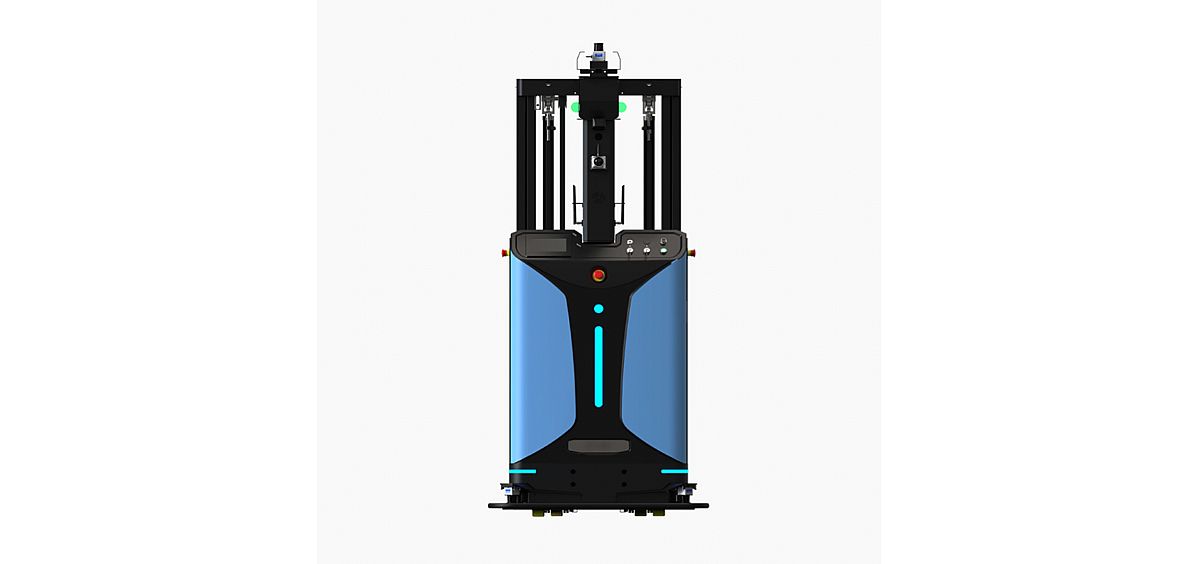

Laser SLAM Intelligent Stacker Forklift JCFL-CDD14
Sample Title
Sample Text
Engineered for Narrow Aisles, Adaptable to Diverse Needs
• Rated Load Capacity: 1,400 kg • Comprehensive Runtime: 10 h • Standard Lifting Height: 1,600 / 3,000 mm • Minimum Turning Radius: 1,227 + 200 mm • Positioning Accuracy: ±10 mm, ±0.5° • Travel Speed (Loaded/Unloaded): 1.2 / 1.5 m/s • Compatible Pallet Type: Three-entry (Chuanzi) pallets • Operation Modes: Automated navigation, handheld remote control • Overall Dimensions (L x W x H, excl. fork tips): Furui / Pepperl+Fuchs: 1,710 x 989 x 1,998 mm / 1,710 x 989 x 2,247 mm • Fork Dimensions (L x W x H, excl. tips): 1,220 x 180 x 70 mm • Fork Outer Width (Adjustable): 570 / 680 mm
[ Ceiling & Non-CE Compatible, Suitable for Both Domestic and International Use ] This series covers both CE and non-CE body versions, fully meeting various usage scenarios both domestically and internationally.
[ SLAM Navigation, Precise and Convenient ] ±10 mm precision SLAM navigation, no reflector required.
[ 360° Three-Dimensional Protection, Truly Safe ] Equipped with 3D obstacle avoidance, safety edge, distance sensors, and other sensors for 360° three-dimensional safety protection, significantly enhancing safety.
[ Slim Design, Effortless Maneuvering in Narrow Passages ] The ultra-small turning radius allows for operation even in narrow passages.
