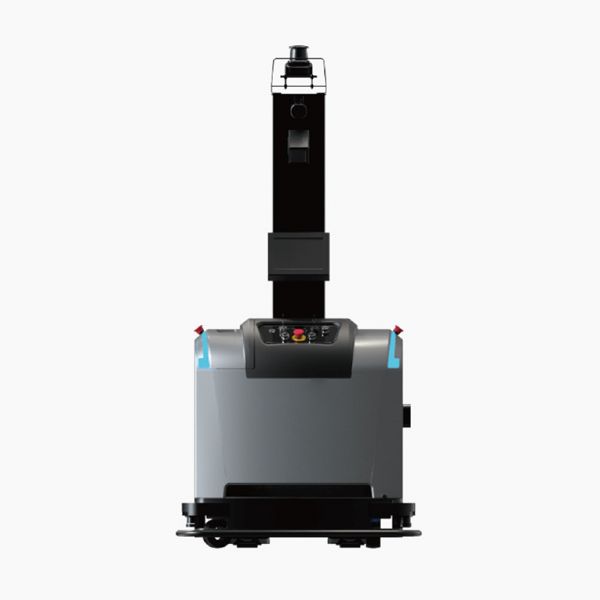

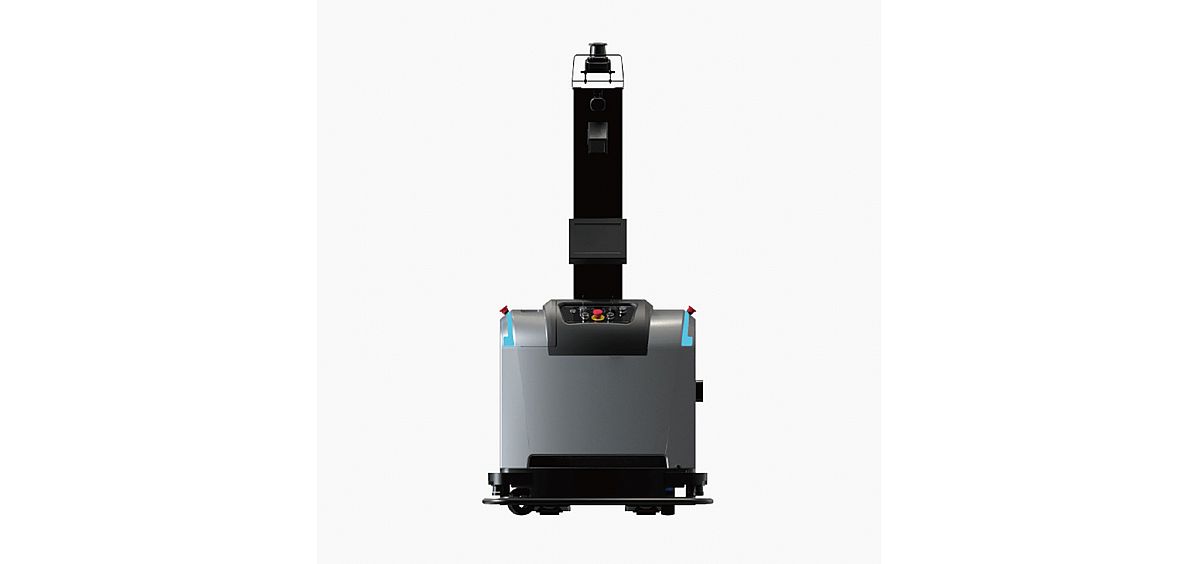

Laser SLAM Intelligent Pallet Forklift JCFL-CBD15

Powerful and Agile, with Optimized Performance

• Rated Load Capacity: 1500 kg
• Comprehensive Runtime: 4-6 h
• Standard Lifting Height: 205 ±5 mm
• Minimum Turning Radius: 1524 mm
• Positioning Accuracy: ±10 mm, ±1°
• Travel Speed (Loaded/Unloaded): 2/2 m/s
• Compatible Pallet Type: Three-entry (Chuanzi) pallets
• Operation Modes: Automated navigation, handheld remote control
• Overall Dimensions (L x W x H, excl. fork tips): 1712 x 932 x1902 mm
• Fork Dimensions (L x W x H, excl. tips): 1220x(170+7)x75mm (7mm raceway)
• Fork Outer Width (Adjustable): 550/600/680 mm
Wholesale Inquiry

PRODUCT DETAILS

[ Small Size, 1.5T Heavy Load Capacity ]
With a vehicle width of only 932 mm (domestic version) and 980 mm (CE version), it can easily navigate narrow passages and supports a maximum load of 1.5T.

[ 360° Wide Field of View, Multiple Safety Protections ]
Supports a 360° scanning range for a wider field of view and enhanced safety; equipped with safety obstacle avoidance lasers, safety edge contact, distance sensors, and hardware self-checking for multiple safety protections.

[ More Than 3 Types of Carriers, Wide-Angle High-Precision Recognition ]
Supports multiple sizes and types of pallets, racks, and cages; can recognize pallets from multiple angles with high precision (such as nine-legged pallets, three-line pallets, and non-standard pallets).

[ Maximum Speed ​​of 2 m/s, 400,000 m² Large Map ]
Supports recognition of maps up to 400,000 m², easily overcoming regional limitations and providing greater handling space and warehouse location options.

[ 2 m/s, 100% Speed ​​Increase ]
Maximum operating speed of 2 m/s, supports map recognition up to 400,000 m², easily overcoming regional limitations and providing greater handling space and storage location options.

[ Fast Charging & Quick Replacement, Dual Battery Dual Range ]
Supports up to 46 A fast charging; 1 hour charging provides 4-6 hours of range with a single battery, and 8-10 hours with dual batteries. 3-minute quick battery swap for beginners; globally certified modular batteries support dual-battery combinations for dual range.

[ CE & Non-CE Body Compatibility, Applicable Domestically and Internationally ]
This series covers both CE and non-CE body versions, fully meeting various usage scenarios both domestically and internationally.
