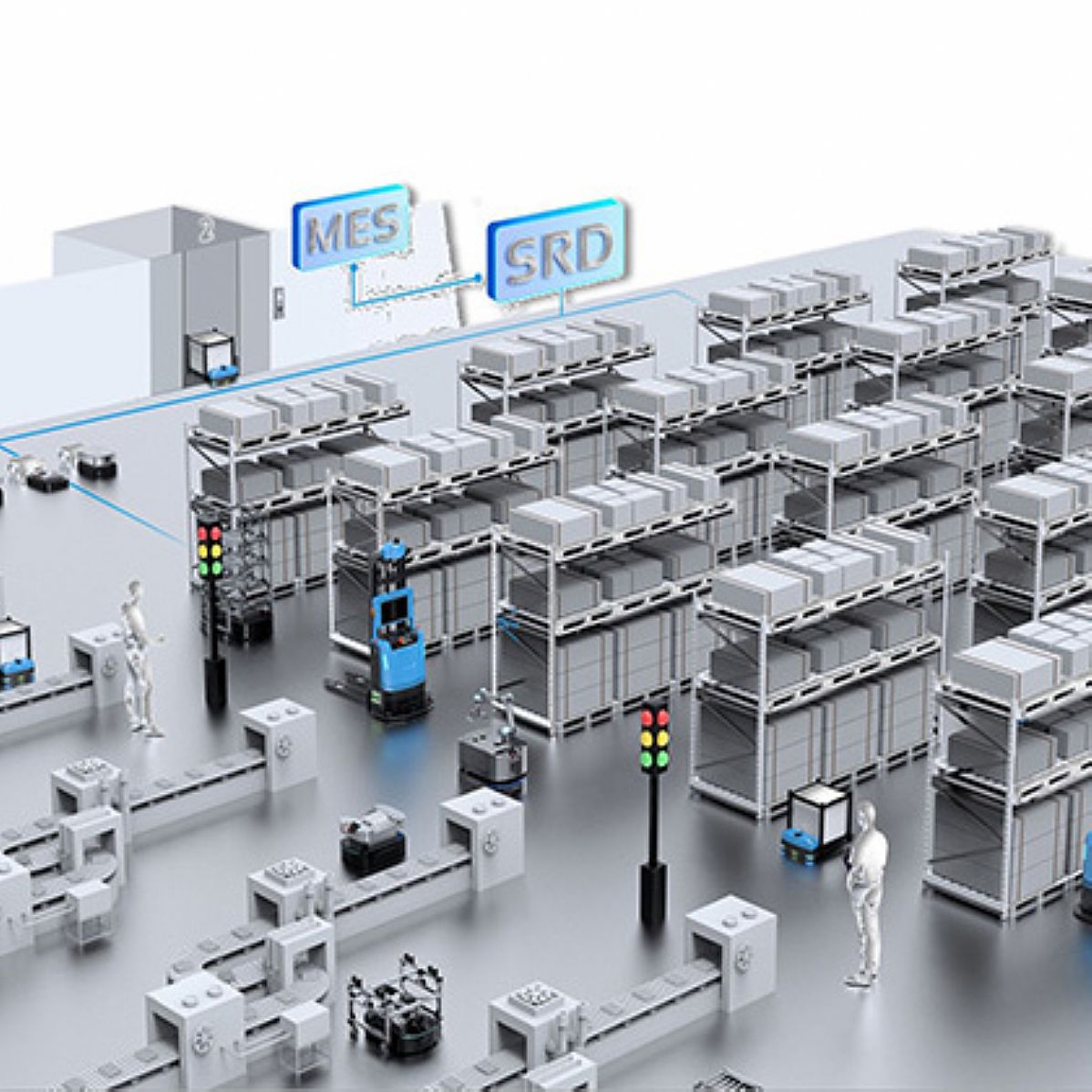

Bin robots, four-way shuttle carts, and miniload stackers are the three core automated bin storage and retrieval systems currently available on the market.
Although they employ different technologies and have distinct performance characteristics, together they define the structure of modern bin warehouses.
For planners, one of the biggest challenges is deciding how to choose around the critical height threshold of 20 meters.
1. Core Equipment Analysis: Understanding the Essence of Three Technological Paths
Selection starts with a deep understanding of the technical principles and capabilities of each type of equipment.
1. Case Picking Robot (CTU): "High Flexibility” Solution from Shelf to Person
The core model is "shelf-to-person." The robot moves along the aisle, lifts directly to the target location, picks one or multiple bins using a telescopic fork or platform, and transports them to the picking workstation at the end of the aisle.
The main advantages are high flexibility and scalability: deployment is relatively simple, adaptable to various sites, and system capacity can be linearly adjusted by adding or removing robots. Suitable for businesses with fluctuating demands or phased investments.
However, the single-machine full-process operation may become a bottleneck when extreme throughput is required.
2. Next-Generation Case Picking Robot (STU): Flexible Solution with Height Breakthrough
The next-generation robot builds on the CTU concept and achieves significant breakthroughs.
STU features a dual-stage telescopic lifting mechanism, with travel speed up to 3 m/s and lift speed 2 m/s, achieving pick-and-place in under 3 seconds for higher efficiency.
Its innovative design surpasses the traditional 12-meter height limitation, enabling applications in warehouses above 20 meters.
This allows STU to maintain CTU’s flexibility while adapting to higher and denser storage needs, with some high-end systems supporting up to 24 meters, providing new flexible automation options for medium-to-high warehouses.
3. Four-Way Shuttle: "Track Networked” Solution for Dense Storage and Efficient Flow
The system consists of racks, four-way shuttles, lift units, sorting systems, and software.
The shuttle moves freely along horizontal and vertical tracks, coordinating with lifts for layer changes. Racks provide dense storage; shuttles handle horizontal transport, lifts handle vertical transport, forming a relay for storage and retrieval.
Core advantages include excellent parallel operation capability and extremely high storage density. Multiple shuttles and lifts can operate simultaneously, and throughput can scale almost linearly with equipment addition.
4. Miniload Stackers: "High-Speed Vertical” Solution
The system typically includes racks, conveyors, stackers, and software, with the stacker as the core device.
Miniload operates at high speed along fixed aisles, with forks designed for fast, precise bin handling.
Key advantages are high single-machine efficiency and reliability. Fixed paths guarantee short cycle times, and mature technology ensures dependable operation. Performance improvements depend on lift speed and acceleration, as well as double-depth storage designs to increase per-cycle handling.
5. Summary of Characteristics
CTU/STU: High system flexibility
Four-way shuttle: High parallel capability and storage density
Miniload: High single-machine efficiency, mature and reliable
2. Core Decision Dimensions: Height, Throughput, SKU, and Business Mode
Selection should align equipment capabilities with project requirements. Key dimensions include:
- Warehouse Height (H): Directly limits equipment applicability; 20 meters is a threshold
- Throughput (TPH): Number of bins to be stored/retrieved per hour, defining system capacity
- SKU Count and Characteristics: Quantity, size, and weight affect standardization and equipment load
- Order Structure / Business Mode: Split-pick, full-case, or production supply; determines operation type
- Investment and Scalability Requirements: Budget, future expansion, implementation timeline, and maintenance complexity
3. Selection Strategy: Scenario-Based Choice Around 20 Meters
Warehouse height can be categorized as
below 20 meters or above
20 meters.
Scenario 1: Warehouse Height Below 20 Meters
All three types can be deployed; selection should match business needs.
CTU/STU (Below 12 meters)
- Requirements: Rapidly growing or fluctuating business; high flexibility; limited budget; irregular structures or obstacles; order fragmentation
- Reason: System can scale by adding robots, flexible for massive SKUs and random storage
- Typical Use: Small-to-medium e-commerce warehouses, line-side storage, R&D sample warehouses, medical equipment storage
Four-Way Shuttle
- Requirements: Extreme density, high and predictable throughput, peak-season spikes
- Reason: Dense racks + multiple shuttles/lifts enable powerful parallel operations
- Typical Use: Large e-commerce regional DCs, retail central warehouses, high-SKU distribution centers
Miniload
- Requirements: High single-aisle efficiency and stability; batch or full-case operations; high reliability requirements
- Reason: Inherits stacker stability and speed, suitable for continuous batch operations
- Typical Use: Automotive parts warehouses, high-end manufacturing line-side storage, pharmaceutical full-case warehouses
Simplified Decision Logic:
- Flexible expansion → CTU/STU
- Maximum density & throughput → Four-way shuttle
- Stability & efficiency → Miniload
Scenario 2: Warehouse Height Above 20 Meters
Above 20 meters usually means large-scale projects, high investment, and a need for higher density and throughput.
Common Challenges:
- Stability and vibration control at high lift speeds
- Precision and complexity of high racks installation
- Optimization of scheduling algorithms to fully utilize vertical transport
Four-Way Shuttle Advantages:
- Extremely high throughput, multi-layer track layout, dozens or hundreds of devices operating in parallel
- Suitable for massive SKU counts and high-volume operations (e.g., large e-commerce hubs)
- Key consideration: Evaluate lift quantity, speed, and scheduling to prevent bottlenecks during peak orders
Miniload Advantages:
- High efficiency per aisle, mature engineering
- Suitable for batch continuous operations requiring long-term stable operation
- Key consideration: Evaluate single-machine cycle time and double-depth/double-station racks for increased throughput
STU Breakthrough Application:
- Dual-stage telescopic lift, compatible with multiple end-effectors
- Efficient collaboration with "underlying” robots, increasing capacity and efficiency
- Suitable for 12–20 meter medium-to-high warehouses, balancing density and efficiency
Extreme Scenario (100,000+ SKUs, e-commerce peak, above 20 meters):
- Prefer Four-way Shuttle + Lift system
- Reason: Random, fragmented, high-volume orders demand parallel capability and peak throughput flexibility
- Miniload is strong individually but overall throughput may be limited
4. Future Trends
- Below 20 meters: Focus on flexibility, density, and efficiency; next-generation STU provides more options for medium warehouses
- Above 20 meters: Focus on Four-way Shuttle vs Miniload trade-off, balancing system parallel throughput vs single-machine efficiency and stability
Hybrid solutions (e.g., Four-way Shuttle + Miniload or STU + Miniload) may emerge, using different equipment in different zones to balance overall density and local peak efficiency.
Conclusion: Understanding business requirements and equipment characteristics is key to making the smartest decisions for automated bin storage warehouses.
